油田熱媒加熱爐： 負荷供熱能力50----1500×104kcal/h， 導熱油的出口溫度：≤350℃
Oilfield heat medium heating furnace: load heating capacity 50-1500 × 104kcal/h, outlet temperature of heat transfer oil: ≤ 350 ℃
主要用于油氣集(ji)輸系統(tong)過程中，將(jiang)原油、天然氣等加熱到(dao)工藝要求的(de)溫度(du)，以便進行輸送、沉降、分離、脫水和初(chu)加工。
Mainly used in oil and gas gathering and transportation systems to heat crude oil, natural gas, etc. to the required temperature for transportation, settling, separation, dehydration, and initial processing.

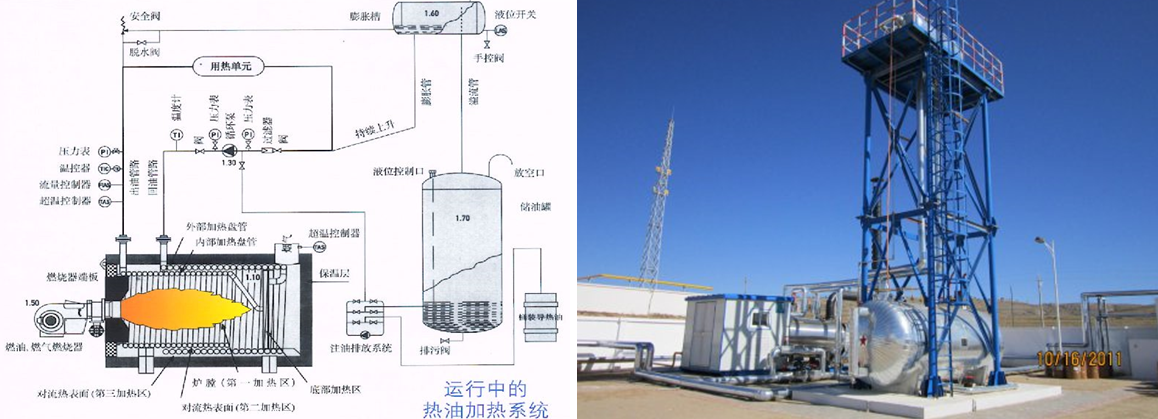

熱媒加(jia)熱系(xi)統主要由熱媒加(jia)熱爐(lu)（有機熱載體爐(lu)）、儲油罐、膨(peng)脹罐、循環泵、注油泵、氮封系(xi)統、控制系(xi)統等(deng)組成，且各自分別成撬供(gong)貨(huo)。
The heat medium heating system mainly consists of a heat medium heating furnace (organic heat carrier furnace), an oil storage tank, an expansion tank, a circulation pump, an oil injection pump, a nitrogen sealing system, a control system, etc., and they are supplied separately.
熱(re)(re)(re)媒(mei)(mei)加熱(re)(re)(re)爐(lu)采用三煙道(dao)半濕背式(shi)設計。熱(re)(re)(re)量通過燃(ran)燒器在爐(lu)膛內燃(ran)燒并以輻射熱(re)(re)(re)和(he)對流換(huan)熱(re)(re)(re)的方式(shi)傳遞給熱(re)(re)(re)媒(mei)(mei)，載熱(re)(re)(re)熱(re)(re)(re)媒(mei)(mei)通過循(xun)環系(xi)統運送(song)到熱(re)(re)(re)用戶，在熱(re)(re)(re)用戶換(huan)熱(re)(re)(re)卸載后(hou)再循(xun)環回到熱(re)(re)(re)媒(mei)(mei)爐(lu)加熱(re)(re)(re)；如(ru)此往復以熱(re)(re)(re)媒(mei)(mei)為載體實現(xian)熱(re)(re)(re)量傳遞，膨脹(zhang)罐、循(xun)環泵及控制系(xi)統為系(xi)統不可缺(que)少的輔(fu)助設備。
The heat medium heating furnace adopts a three flue semi wet back design. Heat is burned in the furnace through a burner and transferred to the heat medium through radiative heat and convective heat exchange. The heat carrying heat medium is transported to the heat user through a circulation system and is recycled back to the heat medium furnace for heating after the heat user unloads the heat exchange; By using heat medium as a carrier to achieve heat transfer, the expansion tank, circulation pump, and control system are indispensable auxiliary equipment in the system.
A、主要性能(neng)特(te)點(dian)：
A、 Main performance characteristics:
1、采用爐體橇、循環泵橇、膨(peng)脹罐鋼架橇、注油泵橇、氮封橇五大橇塊模式供貨。并接受用戶的(de)特殊訂(ding)貨。
1. We supply using five main sled modes: furnace body sled, circulation pump sled, expansion tank steel frame sled, oil injection pump sled, and nitrogen sealing sled. And accept special orders from users.
2、高靜壓(ya)的泵入口(kou)壓(ya)力設計，脫水效果快，系統(tong)運行性大(da)大(da)增強。
2. High static pressure pump inlet pressure design, fast dehydration effect, greatly enhances system operation.
3、專利設計的(de)熱備用(yong)循環泵功能(neng)，在極低環境(jing)中可以(yi)迅速順(shun)利啟(qi)動投入運行。
3. The patented hot standby circulation pump function can be quickly and smoothly started and put into operation in extremely low environments.
4、熱媒爐盤管(guan)(guan)采用彈簧(huang)式設計，有效吸收熱膨脹，防止冷熱膨脹導致(zhi)的爐墻或盤管(guan)(guan)損壞，保證盤管(guan)(guan)的安(an)全(quan)。
4. The heat medium furnace coil adopts a spring type design, effectively absorbing thermal expansion, preventing damage to the furnace wall or coil caused by cold and hot expansion, and ensuring the safety of the coil.
5、最優(you)的流程(cheng)設(she)計(ji)，排氣(qi)迅速有效(xiao)，整(zheng)個系統無(wu)需再設(she)計(ji)排氣(qi)口，投運順利快(kuai)捷。
5. Optimal process design, rapid and effective exhaust, no need to design exhaust ports for the entire system, smooth and fast operation.
6、關鍵保(bao)護儀表為進口儀表，德國品質(zhi)。
6. The key protective instruments are imported instruments of German quality.
7、出口溫度高，100~320℃，滿足眾多用戶的需(xu)要。
7. The export temperature is high, ranging from 100 to 320 ℃, meeting the needs of many users.
8、成熟穩定(ding)的pid控(kong)制參數，系(xi)統(tong)輸出(chu)溫度(du)溫度(du)波動(dong)小(xiao)，小(xiao)于±1℃。
8. Mature and stable PID control parameters, with minimal temperature fluctuations in the system output, less than ± 1 ℃.
9、熱媒(mei)爐前(qian)后墻為開啟式結構，便于爐管(guan)清(qing)洗(xi)和維護。
9. The front and rear walls of the heat medium furnace are of an open structure, which facilitates the cleaning and maintenance of the furnace tubes.
10、 燃料系統廣泛，渣油(you)、重油(you)、輕(qing)油(you)、天(tian)然(ran)氣(qi)、城(cheng)市煤氣(qi)以(yi)及化工工藝廢氣(qi)。
10. The fuel system is extensive, including residual oil, heavy oil, light oil, natural gas, city gas, and chemical process waste gas.
11、 提供(gong)穩定的低壓高溫熱源(yuan)，且(qie)能(neng)實現一(yi)套(tao)系統提供(gong)多溫位熱源(yuan)。
11. Provide stable low-pressure and high-temperature heat sources, and enable a system to provide multi temperature heat sources.
12、 系統熱負荷自動調節、連續(xu)運行；系統全自動運行無人值守。
12. Automatic adjustment of system heat load and continuous operation; The system runs fully automatically without human supervision.
13、 系統介質實現(xian)自動(dong)補償(chang)、自動(dong)調節。
13. The system media achieves automatic compensation and adjustment.
14、 實現遠程的DCS控制。
14. Implement remote DCS control.
