本公司專業制造燃(ran)(ran)油(you)燃(ran)(ran)氣水浴式加熱爐，專為加熱天然氣或原油(you)用的無(wu)壓熱(re)水鍋(guo)爐,是為(wei)滿(man)足油(you)田特殊(shu)需要而設(she)(she)計的一種專用加熱(re)設(she)(she)備，主要用于油氣集輸系統過程中，將原油、天然氣等加熱到工藝要求的溫度，以便進行輸送、沉降、分離、脫水和初加工。

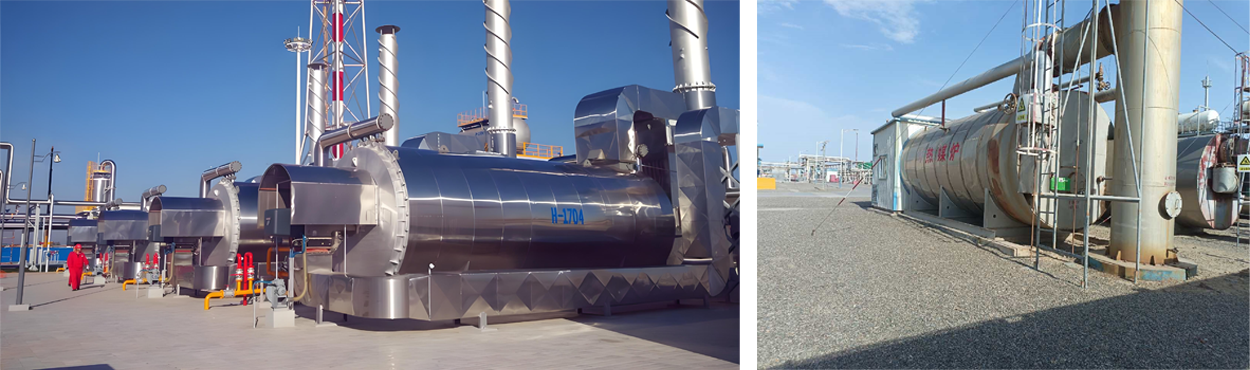

Our company specializes in manufacturing fuel gas water bath heating furnaces, which are pressure free hot water boilers designed specifically for heating natural gas or crude oil. They are a specialized heating equipment designed to meet the special needs of oil fields, mainly used in the process of oil and gas gathering and transportation systems to heat crude oil, natural gas, etc. to the required temperature for transportation, settling, separation, dehydration, and initial processing.
詳(xiang)細說明：負荷范圍: 1000 kW (80萬大卡/h) 至10000 kW (860萬大卡/h) 燃(ran)料:天然氣，LPG，工藝氣體(ti)，輕(qing)油(you)（柴(chai)油(you)），重(zhong)油(you)，原油(you)。
Detailed description: Load range: 1000 kW (800000 kcal/h) to 10000 kW (8.6 million kcal/h) Fuel: natural gas, LPG， Process gases, light oil (diesel), heavy oil, crude oil.
水浴爐工(gong)作原理：燃燒器(qi)將燃料充分燃燒，熱量經(jing)加熱爐火筒(tong)（輻射受(shou)熱面(mian)）及煙管（對流受(shou)熱面(mian)）傳(chuan)遞給殼體內中(zhong)間介質水，水將熱量傳遞給浸泡其中的盤管，從而使盤管中的介質被加熱

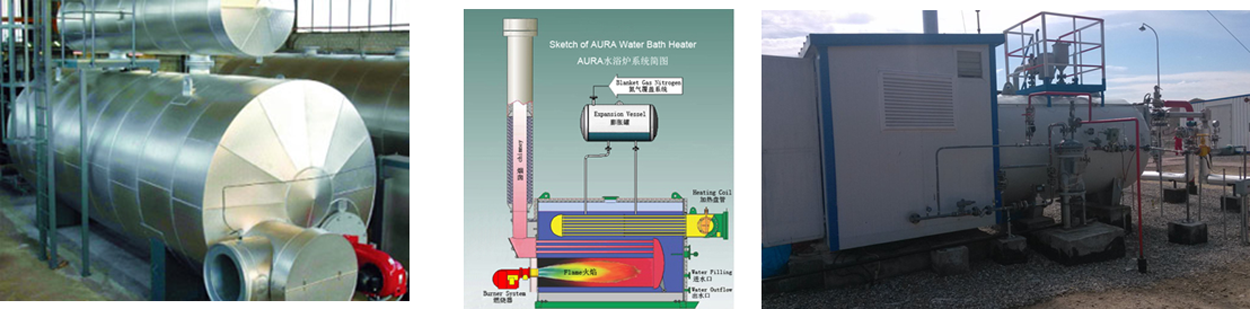

Working principle of water bath furnace: The burner fully burns the fuel, and the heat is transferred to the intermediate medium water in the shell through the heating furnace fire tube (radiation heating surface) and smoke pipe (convection heating surface). The water transfers the heat to the coil immersed in it, thereby heating the medium in the coil
2、特點：2. Characteristics:
水浴(yu)爐采用(yong)戶外設計，全(quan)天(tian)候防護。The water bath adopts an outdoor design with all-weather protection.
水浴爐無壓運行，無(wu)(wu)鍋爐安裝要求，無(wu)(wu)排(pai)放，無(wu)(wu)相關鍋爐規范(fan)和操(cao)作約束；The water bath operates without pressure, there are no boiler installation requirements, no emissions, and no relevant boiler specifications and operational constraints;
水浴式加(jia)熱(re)爐組由二部(bu)分組成：爐體、換(huan)熱(re)器。爐體上部(bu)分設有膨(peng)脹(zhang)水箱。換(huan)熱(re)器嚴格按照國家標準(zhun)GB151-1999管殼式換(huan)熱(re)器制造。間接(jie)式加(jia)熱(re)：本體無壓、系統承(cheng)壓，標準(zhun)配置出(chu)口壓力1.0Mpa.主(zhu)要由水套、火筒(tong)、煙(yan)管(guan)、煙(yan)囪(cong)、盤管(guan)、燃氣燃燒控制系統(tong)組(zu)成(cheng)及操(cao)作(zuo)間(jian)組(zu)成(cheng)，設備出(chu)廠時所有(you)附件儀表(biao)全部(bu)安(an)裝完畢，經過(guo)近(jin)二十年(nian)的油田現場應用及設計(ji)優化，具(ju)有(you)性能極其可(ke)靠，熱效率高，安(an)裝使用簡(jian)單等優點。
The water bath heating furnace group consists of two parts: the furnace body and the heat exchanger. The upper part of the furnace is equipped with an expansion water tank. The heat exchanger is manufactured strictly in accordance with the national standard GB151-1999 for shell and tube heat exchangers. Indirect heating: The main body has no pressure, the system is pressurized, and the standard outlet pressure is 1.0Mpa. It mainly consists of a water jacket, a fire tube, a smoke pipe, a chimney, a coil, a gas combustion control system, and an operating room. All accessory instruments are installed when the equipment leaves the factory. After nearly 20 years of on-site application and design optimization in oil fields, it has the advantages of extremely reliable performance, high thermal efficiency, and simple installation and use.
A、產品(pin)主要性能特點: A、 Main performance characteristics of the product
1、針對用戶(hu)需求個性化設計，提(ti)供(gong)(gong)油氣田(tian)及集輸系(xi)統介質(zhi)加熱的完善解決(jue)方案(an)；只要(yao)用戶(hu)提(ti)供(gong)(gong)相(xiang)關的技術參數和要(yao)求，即可為(wei)用戶(hu)量(liang)身定(ding)制并提(ti)供(gong)(gong)完美的周到、可靠的服務(wu)。
1. Personalized design tailored to user needs, providing comprehensive solutions for medium heating in oil and gas fields and gathering and transportation systems; As long as users provide relevant technical parameters and requirements, we can tailor and provide perfect, thoughtful, and reliable services for them.
2、適應范圍廣，被(bei)加熱介質可(ke)以是天然(ran)氣、原油、污(wu)水以及混合井流(liu)物。處理(li)量范圍大，管(guan)程壓力可(ke)達7MPa。
2. Widely applicable, the heated medium can be natural gas, crude oil, sewage, and mixed well fluids. The processing capacity range is large, and the tube side pressure can reach 7MPa.
3、加熱性能穩定、均勻；控制最(zui)佳風燃(ran)比，燃(ran)燒效率高(gao)。
3. Stable and uniform heating performance; Control the optimal air-fuel ratio for high combustion efficiency.
4、單盤管、多(duo)盤管設置，各盤管負荷和管程壓力依照(zhao)用戶(hu)要求設計。
4. Single coil and multi coil settings, with each coil load and tube side pressure designed according to user requirements.
5、盤管可(ke)以是可(ke)抽出式(shi)，易(yi)于(yu)維(wei)修和(he)保養。5. The coil can be withdrawable and easy to maintain and repair.
6、一體化撬裝設計、結(jie)構緊湊(cou)，熱效率高，按裝簡(jian)單、維護方便。
5. Integrated modular design, compact structure, high thermal efficiency, simple installation, and easy maintenance.
7、豐富冗余的(de)全(quan)自動控(kong)制系(xi)統，實(shi)現輸出(chu)功(gong)率自動調節(jie)、安全(quan)防護(hu)及故(gu)障應(ying)急手(shou)動等功(gong)能(neng)；獨立、穩定的(de)控(kong)制系(xi)統實(shi)現上(shang)傳和接受外圍控(kong)制系(xi)統信(xin)號和指令，實(shi)現了(le)真正(zheng)意義上(shang)的(de)全(quan)參量控(kong)制。
6. Rich and redundant fully automatic control system, realizing functions such as automatic output power adjustment, safety protection, and emergency manual fault response; An independent and stable control system enables uploading and receiving signals and instructions from peripheral control systems, achieving true full parameter control.
8、無電負壓(ya)燃燒(shao)型設備可(ke)以(yi)在無電源環境中(zhong)正常(chang)工作及(ji)自我控制盒故障(zhang)保護(hu)，性能可(ke)靠(kao)，故障(zhang)率極低。
7. The non electric negative pressure combustion type equipment can work normally in a non power environment and has self-control box fault protection, with reliable performance and extremely low failure rate.
9、全自(zi)動微電腦(nao)控(kong)制(zhi)，安全可靠(kao),機組(zu)配有微電腦控制(zhi)系統(tong)，實(shi)現燃燒(shao)、水位、溫度自(zi)動(dong)控制(zhi)，確保(bao)機組(zu)安全可靠運行。
9. Fully automatic microcomputer control, safe and reliable. The unit is equipped with a microcomputer control system to achieve automatic control of combustion, water level, and temperature, ensuring safe and reliable operation of the unit.
10、使用壽命長(chang),機(ji)組內 熱媒水，在90℃以下低溫運行，并(bing)完全排(pai)除了(le)溶解氧的(de)(de)腐蝕，換熱器中不結垢，延(yan)長了(le)機(ji)組使用的(de)(de)壽(shou)命(ming)，換熱效果極佳，是普通鍋爐壽(shou)命(ming)1.5~2倍，長達20年。
10. Long service life, the heat medium water in the unit operates at low temperatures below 90 ℃ and completely eliminates the corrosion of dissolved oxygen. The heat exchanger does not scale, extending the service life of the unit. The heat transfer effect is excellent, 1.5 to 2 times the service life of ordinary boilers, up to 20 years.
11、結(jie)構緊湊、安裝簡便、節省費(fei)用 鍋爐(lu)與換熱器的一(yi)體化設(she)計(ji)，結構緊湊，產品(pin)易于運輸、安裝(zhuang)。多臺機組(zu)并聯使用，免去了(le)換熱站(zhan)的設(she)計(ji)與施工，節省(sheng)費用。
11. The integrated design of the boiler and heat exchanger is compact in structure, easy to install, and cost-effective. The product is easy to transport and install. Multiple units are used in parallel, eliminating the need for design and construction of heat exchange stations and saving costs.
本公司擁(yong)有各類專業技(ji)術人員，實力雄厚，并建立有完善的服(fu)(fu)(fu)務體(ti)系， 可為用(yong)戶提供(gong)“一條龍”式的一流服(fu)(fu)(fu)務：從設(she)計、安裝、調(diao)試到(dao)保養、維修(xiu)等(deng)，亦可按用(yong)戶的不(bu)同要求而提供(gong)不(bu)同形(xing)式的單項(xiang)或多項(xiang)服(fu)(fu)(fu)務。
Our company has various professional and technical personnel with strong capabilities, and has established a complete service system, which can provide users with a "one-stop" first-class service: from design, installation, commissioning to maintenance, repair, etc. We can also provide different forms of single or multiple services according to users' different requirements
