燃(ran)(ran)氣導熱油(you)爐，燃(ran)(ran)氣導熱油(you)鍋(guo)爐，出(chu)口應用(yong)于天燃(ran)(ran)氣豐富的中東(dong)和西亞國家（如俄羅斯(si)，烏磁別克斯(si)坦，伊(yi)郎(lang)，伊(yi)拉克，沙特阿(a)拉伯，土耳其(qi)，印度，巴基斯(si)坦）各(ge)種(zhong)需要進行(xing)高溫(wen)加熱的各(ge)行(xing)各(ge)業。
Gas fired heat transfer oil furnaces and gas fired heat transfer oil boilers are exported to various industries requiring high-temperature heating in Middle East and West Asia countries rich in natural gas (such as Russia, Uzbekistan, Iran, Iraq, Saudi Arabia, Türkiye, India, Pakistan).
燃(ran)(ran)氣導(dao)熱(re)(re)油(you)爐(lu)，燃(ran)(ran)氣導(dao)熱(re)(re)油(you)鍋爐(lu)是以天燃(ran)(ran)氣為燃(ran)(ran)料，導(dao)熱(re)(re)油(you)為熱(re)(re)載體，通過循(xun)環(huan)泵強(qiang)制液(ye)相循(xun)環(huan)，將熱(re)(re)能輸(shu)送(song)給用熱(re)(re)設備，換(huan)熱(re)(re)后返回加(jia)熱(re)(re)爐(lu)重新加(jia)熱(re)(re)的直流式特種工業爐(lu)。
Gas thermal oil furnace and gas thermal oil boiler are special industrial furnaces that use natural gas as fuel, thermal oil as heat carrier, and forced liquid-phase circulation through circulation pumps to transfer heat energy to heating equipment. After heat exchange, they are returned to the heating furnace for reheating.
燃氣導熱(re)油爐，燃氣導熱(re)油鍋爐主要由供熱系統(tong)、燃燒(shao)系統(tong)及(ji)控制(zhi)系統(tong)構成。
Gas thermal oil furnace and gas thermal oil boiler mainly consist of heating system, combustion system, and control system.

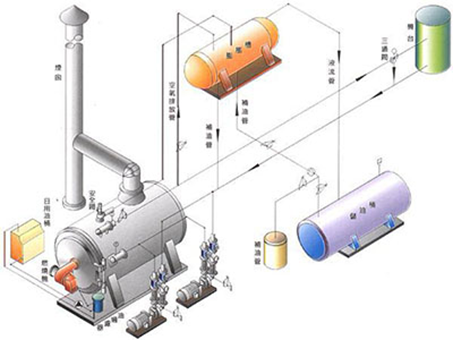

1.1供(gong)熱(re)(re)系統：主要由循環油泵、加熱(re)(re)爐本體、熱(re)(re)用(yong)戶（用(yong)熱(re)(re)設備(bei)）、油氣分離(li)器及(ji)相關閥(fa)門管(guan)線構成，如儲油槽(cao)、膨脹槽(cao)、注油泵等也都是不可缺(que)少的輔助管(guan)路及(ji)設備(bei)。
1.1 Heating system: mainly composed of circulating oil pump, heating furnace body, heat user (heat equipment), oil and gas separator, and related valve pipelines, such as oil storage tank, expansion tank, oil injection pump, etc., are also indispensable auxiliary pipelines and equipment.
1.2燃(ran)(ran)燒系統：主要由燃(ran)(ran)氣供給(gei)系統、燃(ran)(ran)燒器(qi)、加熱爐、煙道防爆門、空(kong)預器(qi)、煙囪及(ji)有關閥門管線組成。
1.2 Combustion system: mainly composed of gas supply system, burner, heating furnace, flue explosion-proof door, air preheater, chimney, and related valve pipelines.
1.3控(kong)制(zhi)系統：控(kong)制(zhi)系統分為(wei)動力控(kong)制(zhi)和儀表(biao)顯示控(kong)制(zhi)兩部分。
1.3 Control System: The control system is divided into two parts: power control and instrument display control.
動力控制主要控制循(xun)環(huan)泵(beng)、注油泵(beng)、助燃空氣風機、燃燒(shao)器(qi)等(deng)設備(bei)的起動與停止，同(tong)時循(xun)環(huan)泵(beng)與燃燒(shao)器(qi)之間(jian)進行聯鎖(suo)控制以保(bao)證(zheng)加(jia)熱爐(lu)進行安(an)全運行。
Power control mainly controls the start and stop of equipment such as circulation pumps, oil injection pumps, combustion air fans, and burners. At the same time, interlocking control is carried out between the circulation pumps and burners to ensure the safe operation of the heating furnace.
儀(yi)表顯示控(kong)制(zhi)通常采用(yong)出口(kou)油(you)溫(wen)控(kong)制(zhi)燃燒器進行油(you)溫(wen)調節、進出口(kou)油(you)溫(wen)顯示、熱載體壓(ya)差報警(jing)、膨脹槽液位報警(jing)及(ji)最終排(pai)煙溫(wen)度顯示，采用(yong)溫(wen)度信(xin)號控(kong)制(zhi)燃燒器，使其達到自動控(kong)制(zhi)功能。
Instrument display control usually uses outlet oil temperature control burner for oil temperature regulation, inlet and outlet oil temperature display, heat carrier pressure difference alarm, expansion tank liquid level alarm, and final exhaust gas temperature display. Temperature signal control burner is used to achieve automatic control function.
在自(zi)動控制(zhi)系統的管理下，通(tong)過各(ge)系統的互相(xiang)協調，可實現以(yi)下功能：
Under the management of the automatic control system, the following functions can be achieved through the coordination of various systems:
1) 為用(yong)熱(re)(re)設備提(ti)供(gong)滿足負(fu)荷(he)要(yao)求的穩定高溫熱(re)(re)源；
1) Provide stable high-temperature heat sources that meet load requirements for thermal equipment;
2) 保持整(zheng)個熱系(xi)統穩定運(yun)行(xing)，實現不(bu)間斷連續運(yun)行(xing)；
2) Maintain stable operation of the entire thermal system and achieve uninterrupted continuous operation;
3) 實(shi)現加熱爐熱負(fu)荷(he)自動調節；
3) Realize automatic adjustment of heating furnace heat load;
4) 實(shi)現熱(re)載體爐在非(fei)正常工(gong)況下的安(an)全連鎖(suo)反饋保護(hu)；
4) Implement safety chain feedback protection for heat carrier furnaces under abnormal working conditions;
5) 具有各(ge)種非(fei)正(zheng)常(chang)情況(kuang)下的預警、報警、故障鎖定等功能(neng)；
5) Has various functions such as early warning, alarm, and fault locking under abnormal conditions;
6) 實現(xian)循環油(you)泵的切(qie)換,完成運行中的熱油(you)即(ji)時(shi)過濾;
6) Realize the switching of the circulating oil pump and complete the real-time filtration of hot oil during operation;
7) 可實現自動無(wu)人運行。
7) Can achieve automatic unmanned operation.
燃氣(qi)導熱(re)油爐以它的(de)低(di)壓高溫、運(yun)行安全、控(kong)制(zhi)先進、效益顯(xian)著等特點(dian)得到了(le)國內外各行業的(de)極大關注，廣泛應用于石油化工：油脂： 塑料橡膠(jiao)： 皮革行業： 紡織印染： 化纖纖維(wei)： 涂裝油漆： 汽車飛(fei)機： 木材加工： 林產工業： 造紙印刷： 建筑建材(cai)： 碳素(su)工業：公路交通： 市政公路筑路： 瀝青加熱： 制藥工業(ye)： 原子能工(gong)業：金屬加(jia)工(gong)： 食品工業等(deng)工業領域(yu)，其發展至今,已成為國民經濟中必(bi)不可少的節能型(xing)供熱設備。
Gas thermal oil furnaces have attracted great attention from various industries both domestically and internationally due to their characteristics of low pressure and high temperature, safe operation, advanced control, and significant benefits. They are widely used in industries such as petrochemicals, fats, plastics, rubber, leather, textile printing and dyeing, chemical fibers, painting, automobiles and airplanes, wood processing, forestry industry, papermaking and printing, building materials, carbon industry, highway transportation, municipal road construction, asphalt heating, pharmaceutical industry, atomic energy industry, metal processing, and food industry. Since its development, it has become an essential energy-saving heating equipment in the national economy.

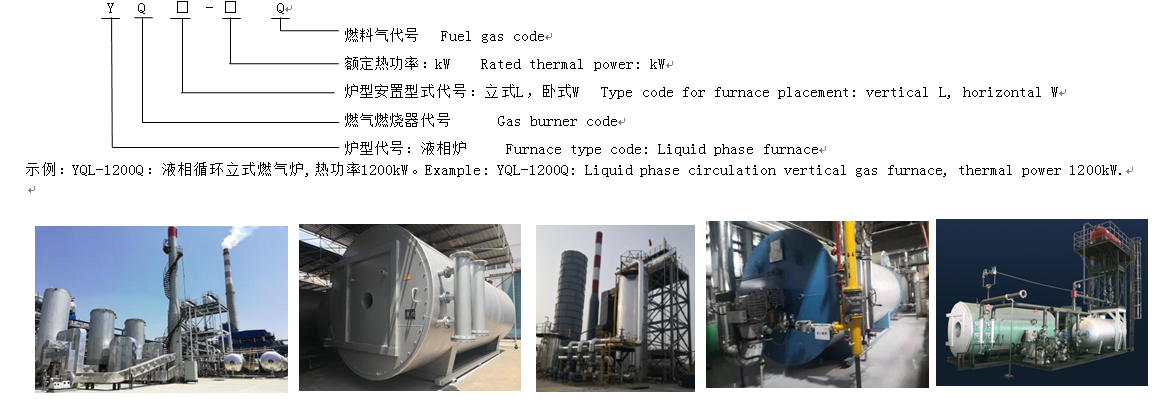

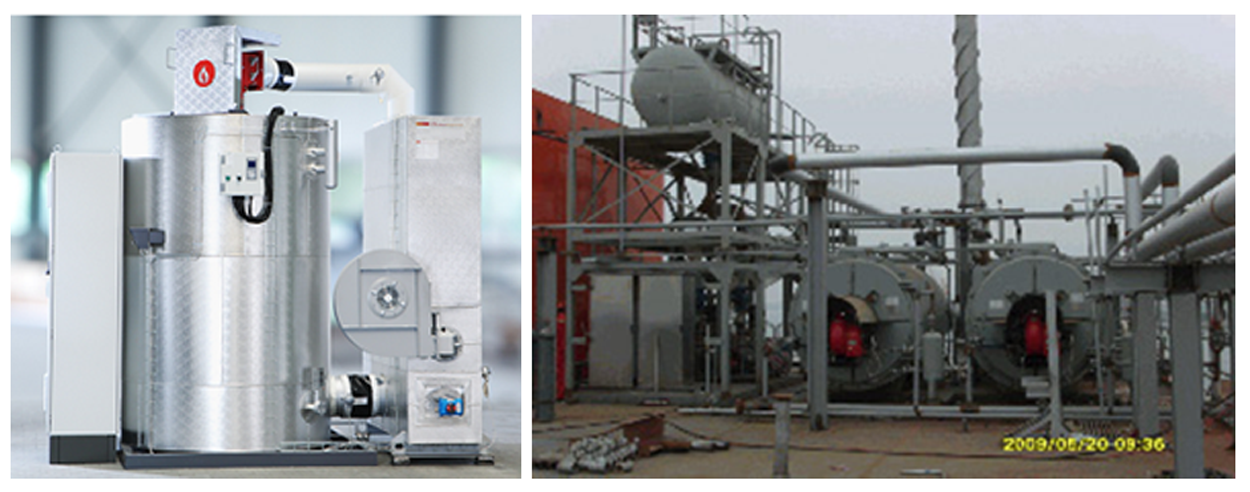

燃氣(qi)導熱油爐(lu)，燃氣(qi)導熱油鍋爐(lu)規格型號有：立式(shi)與臥式(shi)之分(fen)
There are two types of specifications for gas thermal oil boilers: vertical and horizontal
YQW（L） 15~250 ×104kcal/h燃氣導熱油鍋爐型號規格參數
YQW (L) 300~1200 × 104kcal/h Fuel Gas Thermal Oil Boiler Model Specification Parameters
型號(hao) 參(can)數(shu) | YQW-180 (15) | YQW-350 (30) | YQW-600 (60) | YQW-850 (80) | YQW-1200 (100) | YQW-1400 (125) | YQW-1800 (150) | YQW-2400 (200) | YQW-3000 (250) | |
額定熱功率 kW Rated thermal power kW | 180 | 350 | 700 | 940 | 1200 | 1400 | 1800 | 2400 | 3000 | |
熱效(xiao)率 % | 85 | 85 | 85 | 85 | 85 | 85 | 85 | 85 | 85 | |
設(she)計壓(ya)力 MPa Thermal efficiency% | 1 | 1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | |
最(zui)高(gao)介質溫度(du) ℃ Maximum medium temperature ℃ | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 | |
爐內容油(you)量 m3 Oil content in the furnace, m3 | 0.16 | 0.32 | 0.4 | 0.77 | 1.2 | 1.35 | 1.48 | 2.6 | 3.2 | |
循環油量(liang)m3 /h Circulating oil volume m3/h | 20 | 40 | 60 | 80 | 100 | 100 | 100 | 200 | 200 | |
配(pei)管聯接口徑(jing) DN Pipe connection diameter DN | 50 | 100 | 100 | 100 | 125 | 125 | 125 | 150 | 150 | |
系統裝(zhuang)機容量 kW System installed capacity kW | 11 | 14 | 30 | 30 | 45 | 45 | 45 | 70 | 80 | |
外 形 尺 寸 | 長(chang) mm Length mm | 1600 | 2600 | 3000 | 3150 | 3560 | 3830 | 4200 | 4700 | 5250 |
寬(kuan) mm Width mm | 1300 | 1420 | 1700 | 2100 | 2400 | 2550 | 2600 | 3000 | 3000 | |
高 mm Height mm | 1500 | 1730 | 1700 | 1860 | 2140 | 2200 | 2270 | 2600 | 2660 | |
設備總(zong)重(zhong)量 kgT otal weight of equipment kg | 2565 | 3400 | 3670 | 4810 | 6500 | 7250 | 8250 | 12000 | 13800 | |
注：熱(re)(re)效率指爐體熱(re)(re)效率，配置余熱(re)(re)回收裝(zhuang)置后，系統熱(re)(re)效率可達到92%以上
Note: Thermal efficiency refers to the thermal efficiency of the furnace body. After configuring a waste heat recovery device, the system's thermal efficiency can reach over 92%
YQW（L） 300~1200 ×104kcal/h燃油燃氣導熱油鍋爐(lu)型(xing)號規格(ge)參(can)數
YQW (L) 300~1200 × 104kcal/h Fuel Gas Thermal Oil Boiler Model Specification Parameters
型號 參數 | YQW-3500 (300) | YQW-4000 (350) | YQW-4600 (400) | YQW-6000 (500) | YQW-7000 (600) | YQW-8170 (700) | YQW-9500 (800) | YQW-12000 (1000) | YQW-14000 (1200) | |
額定熱功率 kW Rated thermal power kW | 3500 | 4000 | 4600 | 6000 | 7000 | 8170 | 9500 | 12000 | 14000 | |
熱效(xiao)率 % | 85 | 85 | 85 | 85 | 85 | 85 | 85 | 85 | 85 | |
設(she)計壓力 MPa Thermal efficiency% | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | |
最高介質溫度(du) ℃ Maximum medium temperature ℃ | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 | |
爐(lu)內容(rong)油量 m3 Oil content in the furnace, m3 | 3.9 | 4.6 | 5.6 | 7.5 | 9 | 11 | 13 | 14 | 18.6 | |
循(xun)環油量m3 /h Circulating oil volume m3/h | 200 | 300 | 300 | 300 | 340 | 400~500 | 400~500 | 400~500 | 800 | |
配管聯接口徑 DN Pipe connection diameter DN | 150 | 200 | 200 | 250 | 250 | 300 | 300 | 300 | 350 | |
系統(tong)裝機容量 kW System installed capacity kW | 80 | 120 | 120 | 130 | 150 | 230 | 230 | 270 | 300 | |
外(wai) 形(xing) 尺(chi) 寸(cun)
| 長 mm Length mm | 5650 | 6100 | 6800 | 7500 | 8650 | 9200 | 10200 | 10800 | 12000 |
寬 mm Width mm | 3200 | 3350 | 3500 | 3900 | 4000 | 4100 | 4200 | 4500 | 4500 | |
高 mm Height mm | 2860 | 2990 | 3140 | 3500 | 3600 | 3730 | 3730 | 3980 | 4120 | |
設備總重量 kgT otal weight of equipment kg | 16070 | 17620 | 20450 | 25000 | 29850 | 33970 | 37000 | 42600 | 53000 | |
注：熱(re)效率指爐體(ti)熱(re)效率，配置余(yu)熱(re)回(hui)收裝(zhuang)置后，系統熱(re)效率可達到92%以上
Note: Thermal efficiency refers to the thermal efficiency of the furnace body. After configuring a waste heat recovery device, the system's thermal efficiency can reach over 92%
