燃氣熔鹽爐(lu) 燃氣熔鹽加熱爐(lu) Gas molten salt furnace Gas molten salt heating furnace

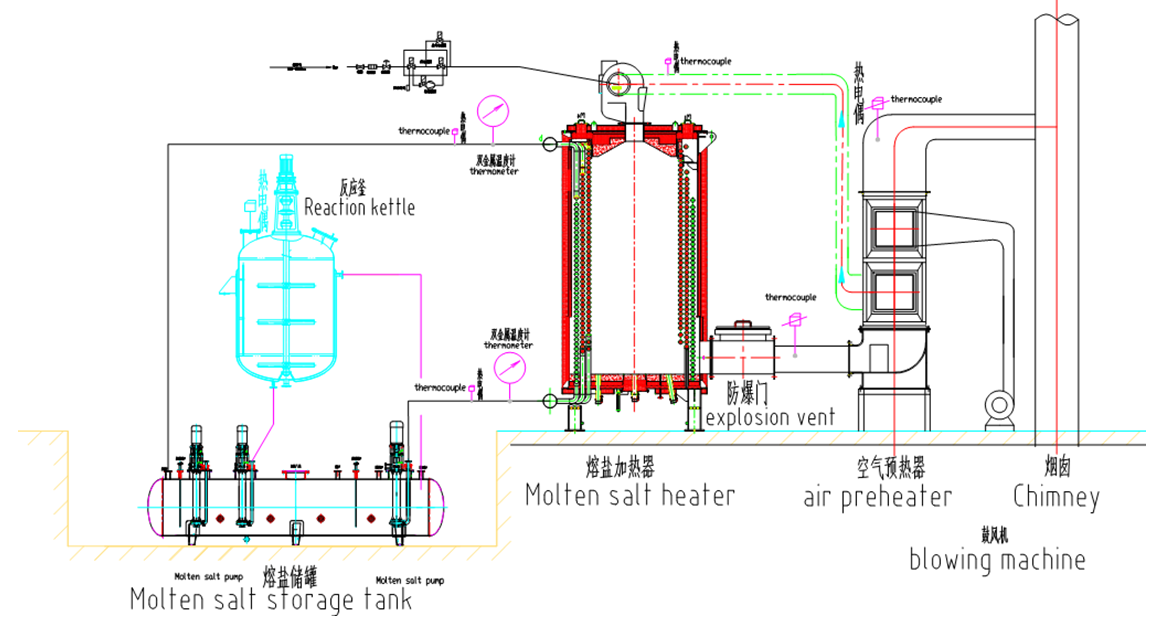

燃氣熔鹽爐是以天然氣為燃料，以(yi)熔鹽(yan)為熱載體，利(li)用熔鹽(yan)泵強制液相循環，將熱能輸送給(gei)用熱設(she)備，繼而返回重新加熱的(de)直(zhi)流式特種(zhong)工(gong)業爐。整個(ge)系統由熔鹽供熱系統、燃燒系統及控制系統構成:
Gas molten salt furnace is a special industrial furnace that uses natural gas as fuel and molten salt as a heat carrier. It uses a molten salt pump to force liquid-phase circulation, transfer heat energy to the heating equipment, and then return it to reheat. The entire system consists of a molten salt heating system, a combustion system, and a control system:
熔(rong)(rong)鹽供熱系統由熔(rong)(rong)鹽爐本(ben)體、熔(rong)(rong)鹽泵、熔(rong)(rong)鹽槽及有關輸送管線(xian)、閥門組成。
The molten salt heating system consists of the molten salt furnace body, molten salt pump, molten salt tank, and related conveying pipelines and valves
燃(ran)燒系統：主(zhu)要由(you)燃(ran)氣供給系統、燃(ran)燒器(qi)、熔鹽爐、煙道防爆門(men)、空氣預熱(re)器(qi)、煙氣余(yu)熱(re)換熱(re)器(qi)、煙囪及(ji)有關閥門(men)管線組(zu)成。
Combustion system: mainly composed of gas supply system, burner, molten salt furnace, flue explosion-proof door, air preheater, flue gas waste heat exchanger, chimney, and related valve pipelines.
控(kong)(kong)制系統分(fen)為動力控(kong)(kong)制和儀表顯示控(kong)(kong)制兩部分(fen)。
The control system is divided into two parts: power control and instrument display control.
動力(li)控(kong)制主要控(kong)制熔鹽罐(guan)內的(de)(de)電加(jia)(jia)熱(re)器(qi)，熔鹽循(xun)環泵、風機(ji)、燃(ran)(ran)燒(shao)器(qi)等設備的(de)(de)起動與停止，同時循(xun)環泵與燃(ran)(ran)燒(shao)器(qi)之間進行聯鎖控(kong)制以保證加(jia)(jia)熱(re)爐的(de)(de)安(an)全運行。Power control mainly controls the start and stop of the electric heater, molten salt circulation pump, fan, burner and other equipment in the molten salt tank. At the same time, interlocking control is carried out between the circulation pump and burner to ensure the safe operation of the heating
儀(yi)表顯示控(kong)制：熔鹽爐負荷是根據智(zhi)能(neng)儀表出口油溫的(de)設(she)置，通過儀表智(zhi)能(neng)計算，進行(xing) PID 調節(jie)功能(neng)， 自動調節(jie) 燃料量(liang)與(yu)空氣供給量(liang)，以(yi)充分滿足控(kong)制要(yao)求..
Instrument display control: The load of the molten salt furnace is set based on the outlet oil temperature of the intelligent instrument. Through intelligent calculation by the instrument, PID adjustment function is performed to automatically adjust the fuel and air supply to fully meet the control requirements
燃氣熔鹽爐廣泛應用(yong)在固堿(jian)蒸發濃縮、三聚(ju)氰(qing)胺制取、氫氧化(hua)鋁溶出、廢液廢油高溫再(zai)生(sheng)等化(hua)工單位；也可應用(yong)在太陽(yang)能光(guang)熱(re)發電(dian)的儲能。
Gas molten salt furnaces are widely used in chemical units such as solid alkali evaporation concentration, melamine production, aluminum hydroxide leaching, and high-temperature regeneration of waste liquid and oil; It can also be used for energy storage in solar thermal power generation.

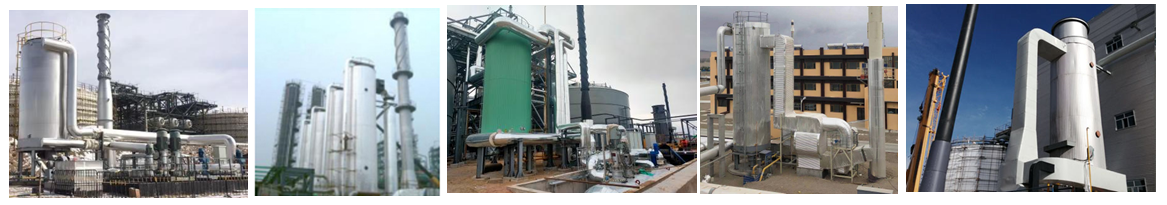

燃氣熔鹽爐出口(kou)應用于天燃氣(qi)豐富的(de)中東和西亞(ya)國家(jia)（如俄羅斯(si)(si)，烏磁別克(ke)斯(si)(si)坦(tan)，伊(yi)郎，伊(yi)拉克(ke)，沙特阿拉伯，土(tu)耳其，印(yin)度，巴基斯(si)(si)坦(tan)）各(ge)種需要進(jin)行高(gao)溫加熱的(de)各(ge)行各(ge)業。
The export of gas-fired molten salt furnaces is used in various industries requiring high-temperature heating in Middle East and West Asia countries rich in natural gas (such as Russia, Ukraine, Iran, Iraq, Saudi Arabia, Türkiye, India, Pakistan).燃氣熔鹽爐(lu)型號規(gui)格30-400萬大卡參數(shu)表
Model and Specification of Gas Molten Salt Furnace with a Capacity of 300000 to 4000000 kcal Parameters Table
型(xing)號 參(can)數 | RYY(Q)-350 (30) | RYY(Q)-700 (60) | RYY(Q)-960 (80) | RYY(Q)-1200 (100) | RYY(Q)-1400 (125) | RYY(Q)-2400 (200) | RYY(Q)-3500 (300) | RYY(Q)-4600 (400) | |
額定熱(re)功率 kW Rated thermal power kW | 350 | 700 | 960 | 1200 | 1400 | 2400 | 3500 | 4600 | |
熱效率 % Thermal efficiency% | 70 | 70 | 70 | 70 | 70 | 70 | 75 | 75 | |
設計壓力(li) MPa Design pressure MPa
| 1 | 1 | 1 | 1.1 | 1.1 | 1.1 | 1.3 | 1.3 | |
最高介(jie)質(zhi)溫度(du) ℃ Maximum medium temperature ℃ | 450 | 450 | 450 | 450 | 450 | 450 | 450 | 450 | |
爐內介質容量 m3 Furnace medium capacity m3 | 0.35 | 0.5 | 0.7 | 0.95 | 1.7 | 3 | 4.9 | 5 | |
循環量m3 /h Circulation volume m3/h | 40 | 40 | 50 | 80 | 170 | 80 | 250 | 170 | |
配管聯接口徑 DN Pipe connection diameter DN | 100 | 100 | 125 | 125 | 150 | 150 | 250 | 200 | |
系統裝機(ji)容量 kW | 30 | 30 | 30 | 50 | 55 | 60 | 130 | 130 | |
外 形(xing) 尺 寸 | 直徑 mm Diameter mm | Φ1710 | Φ1710 | Φ1910 | Φ2020 | Φ2400 | Φ2970 | Φ3250 | Φ3400 |
高(gao) mm Height mm | 2600 | 3300 | 3600 | 4100 | 4000 | 6400 | 7000 | 8000 | |
設備總重量 kg Total weight of equipment kg | 3900 | 4350 | 5290 | 6360 | 8600 | 18410 | 25000 | 31000 | |
燃氣熔鹽爐型號規(gui)格600-2000萬大(da)卡參數表(biao)
Model and Specification of Gas Molten Salt Furnace with a Capacity of 6000000 to 20000000 kcal Parameters Table
型號 參數 | RYY(Q)-7000 (600) | RYY(Q)-8170 (700) | RYY(Q)-10500 (900) | RYY(Q)-12000 (1000) | RYY(Q)-14000 (1200) | RYY(Q)-15122 (1300) | RYY(Q)-17445 (1500) | RYY(Q)-23260 (2000) | |
額(e)定熱(re)功率 kW Rated thermal power kW | 7000 | 8170 | 10500 | 12000 | 14000 | 15122 | 17445 | 23260 | |
熱效率 % Thermal efficiency% | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
設計壓力 MPa Design pressure MPa
| 1.3 | 1.8 | 1.8 | 1.9 | 1.6 | 1.6 | 2.0 | 1.8 | |
最高介質(zhi)溫度(du) ℃ Maximum medium temperature ℃ | 450 | 450 | 450 | 450 | 450 | 450 | 450 | 450 | |
爐內介質容量 m3 Furnace medium capacity m3 | 9.1 | 10.9 | 13 | 13 | 15 | 18 | 21 | 25 | |
循環量m3 /h Circulation volume m3/h | 230 | 250 | 360 | 400 | 440 | 300 | 500 | 900 | |
配管聯(lian)接口徑 DN Pipe connection diameter DN | 200 | 250 | 300 | 300 | 300 | 250 | 350 | 400 | |
系統裝機容量 kW | 160 | 240 | 280 | 300 | 350 | 350 | 400 | 700 | |
外 形 尺 寸
| 直徑 mm Diameter mm | Φ3650 | Φ3700 | Φ3950 | Φ4080 | Φ4080 | Φ4450 | Φ4520 | Φ4800 |
高 mm Height mm | 10340 | 11360 | 12050 | 11840 | 14500 | 14000 | 16000 | 16600 | |
設(she)備總重量 kg Total weight of equipment kg | 47200 | 51800 | 65440 | 70000 | 91550 | 98320 | 108180 | 122080 | |
注：熱(re)(re)(re)效(xiao)(xiao)率指爐體熱(re)(re)(re)效(xiao)(xiao)率，配置余熱(re)(re)(re)回收裝置后，系統(tong)熱(re)(re)(re)效(xiao)(xiao)率可大(da)于90%以上。
Note: Thermal efficiency refers to the thermal efficiency of the furnace body. After configuring a waste heat recovery device, the system's thermal efficiency can exceed 90% or more.
燃氣熔鹽爐特點：Characteristics of Gas Molten Salt Furnace:
1. 低壓高(gao)溫，安全性強，與導(dao)熱油(you)相(xiang)比在相(xiang)同的壓力下可獲得更高(gao)的使用(yong)溫度；
1. Low pressure and high temperature, strong safety, and can achieve higher operating temperatures compared to heat transfer oil under the same pressure;
2. 供熱溫度穩定，能準(zhun)確地進行負荷、溫度調(diao)整；
2. Stable heating temperature, able to accurately adjust load and temperature;
3. 系統熱效率(lv)高，普遍高于92%以上(shang)；
3. The thermal efficiency of the system is high, generally above 92%;
4. 運行控制和(he)安全監測裝備完備，有(you)效降低運維成本；
4. Complete operation control and safety monitoring equipment, effectively reducing operation and maintenance costs;
5. 自(zi)動控制(zhi)：機械化、全(quan)自(zi)動控制(zhi)、比例調節、PLC可編程或(huo)DCS人機對話集成控制(zhi)技術；
5. Automatic control: Mechanized, fully automatic control, proportional adjustment, PLC programmable or DCS human-machine dialogue integrated control technology;
6. 熔(rong)鹽爐因供熱負(fu)荷和循環流量(liang)不同，大多(duo)采用二層(ceng)或三(san)(san)層(ceng)圓盤管形(xing)式，內圈盤管為輻射受(shou)熱面(mian)，中圈盤管、外圈盤管為對流受(shou)熱面(mian)，三(san)(san)層(ceng)盤管并聯運行，結構簡單，使用方便。
6. Due to different heating loads and circulating flow rates, molten salt furnaces mostly adopt the form of two-layer or three-layer circular tubes. The inner coil is a radiating heating surface, while the middle and outer coils are convective heating surfaces. The three-layer coils operate in parallel, with a simple structure and convenient use.
7. 燃氣(qi)熔鹽爐為立式，占地面積少，爐(lu)管內熔鹽可以靠自(zi)重排空(kong)，燃燒器分(fen)布(bu)在爐(lu)體(ti)的頂部或(huo)者在底(di)部，筒體(ti)主(zhu)材： 12Cr1MoVR， 管材：12Cr2MoG。
7. The gas molten salt furnace is vertical and occupies a small area. The molten salt inside the furnace tube can be emptied by its own weight. The burners are distributed at the top or bottom of the furnace body. The main material of the cylinder is 12Cr1MoVR, and the pipe material is 12Cr2MoG.
