常州市上能鍋(guo)爐有限公司專注設計制造電加熱(re)(re)導熱(re)(re)油爐(lu).
Changzhou Shangneng Boiler Co., Ltd. specializes in designing and manufacturing electric heating and heat transfer oil furnaces,
電(dian)加熱導熱油爐功能特點：Functional characteristics of electric heating and thermal oil furnace:
1、具有低(di)壓、高溫、安全、高效節能(neng)的特點。
1. It has the characteristics of low pressure, high temperature, safety, high efficiency and energy saving.
2、具(ju)有(you)完備(bei)的運行控(kong)制和安全監測裝置，可以精密(mi)地控(kong)制工作溫度。
2. Equipped with complete operation control and safety monitoring devices, it can precisely control the working temperature.
3、結構合理、配(pei)套齊全、安裝周期短，運(yun)行和維修方便，便于鍋爐布置。
3. Reasonable structure, complete supporting facilities, short installation cycle, easy operation and maintenance, and convenient boiler layout.
4、由于電加(jia)熱有機熱載體爐采用(yong)先進(jin)的防爆結構，可應用(yong)于工廠(chang)Ⅱ區防爆(bao)，防爆(bao)等(deng)級可達C級(ji)。
4. Due to the advanced explosion-proof structure adopted by the electric heating organic heat carrier furnace, it can be applied to the explosion-proof of Zone II of the factory, and the explosion-proof level can reach Class C.

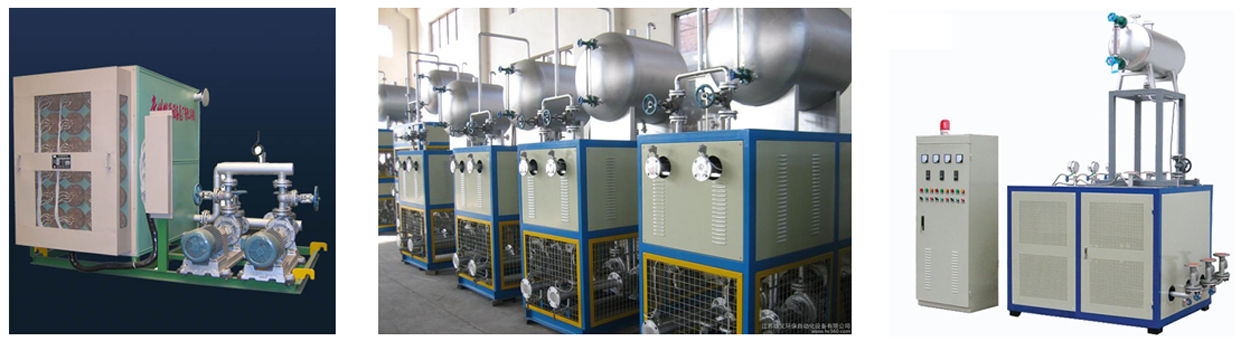

電加熱導(dao)熱油(you)爐非防(fang)爆型的圖(tu)例，
Legend of non explosion proof electric heating and heat transfer oil furnace,
電加(jia)熱(re)導熱(re)油(you)爐非(fei)(fei)防爆(bao)型與非(fei)(fei)防爆(bao)型的，在化工園區(qu)應買防爆(bao)型的，防爆等(deng)級：dIIBT4,防護等(deng)級IP55
For non explosion proof and non explosion proof electric heating oil furnaces, explosion-proof types should be purchased in chemical industrial parks, with explosion-proof rating of dIIBT4 and protection level of IP55
電加熱導熱油爐工作原理： Working principle of electric heating thermal oil furnace:
電(dian)加(jia)熱(re)(re)導(dao)熱(re)(re)油(you)爐(lu)的熱(re)(re)量(liang)是(shi)由浸入導(dao)熱(re)(re)油(you)的電(dian)加(jia)熱(re)(re)元件產生和(he)傳(chuan)輸的，以導(dao)熱(re)(re)油(you)為介(jie)質，利用(yong)循(xun)(xun)環泵(beng)，強制導(dao)熱(re)(re)油(you)進行(xing)液相循(xun)(xun)環，將熱(re)(re)量(liang)傳(chuan)遞給用(yong)一個或多(duo)種用(yong)熱(re)(re)設(she)備，經用(yong)熱(re)(re)設(she)備卸載后，重新(xin)通(tong)過循(xun)(xun)環泵(beng)，回到(dao)(dao)加(jia)熱(re)(re)器，再吸收熱(re)(re)量(liang)，傳(chuan)遞給用(yong)熱(re)(re)設(she)備，如此周而復始，實現熱(re)(re)量(liang)的連續傳(chuan)遞，使(shi)被加(jia)熱(re)(re)物體(ti)溫度升(sheng)高，達到(dao)(dao)加(jia)熱(re)(re)的工(gong)藝要求。
The heat of the electric heating oil furnace is generated and transmitted by the electric heating element immersed in the heat transfer oil. Using the heat transfer oil as the medium, a circulation pump is used to force the heat transfer oil to circulate in the liquid phase, transferring the heat to one or more heating devices. After being unloaded by the heating devices, the heat is returned to the heater through the circulation pump, absorbed again, and transferred to the heating devices. This process repeats to achieve continuous heat transfer, raising the temperature of the heated object and meeting the heating process requirements.

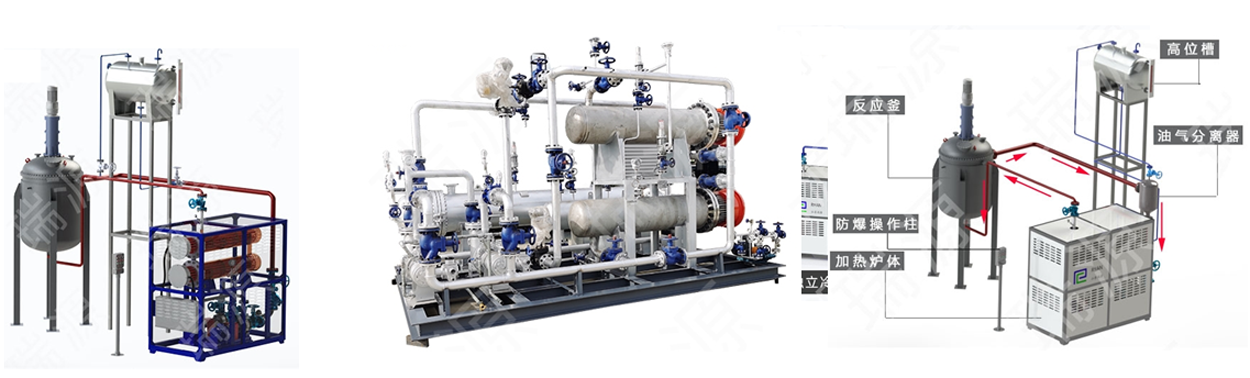

電加熱(re)(re)導熱(re)(re)油爐是由(you)防(fang)爆電加熱(re)(re)器(qi)、有機熱(re)(re)載體(ti)爐、現場(chang)防(fang)爆操作箱、熱(re)(re)油泵、膨脹槽、儲油槽等(deng)在工(gong)(gong)廠組裝成一個整(zheng)體(ti)式的(de)(de)電加熱(re)(re)爐，用戶(hu)只僅需接入電源、介質的(de)(de)進出(chu)口管道及(ji)一些電氣接口即可使用，該產品廣泛應用于石油、化(hua)工(gong)(gong)、制藥、紡織印染、輕工(gong)(gong)、建材等(deng)工(gong)(gong)業(ye)領域。
The electric heating thermal oil furnace is an integrated electric heating furnace assembled in a factory from explosion-proof electric heaters, organic heat carrier furnaces, on-site explosion-proof operation boxes, hot oil pumps, expansion tanks, oil storage tanks, etc. Users only need to connect the power supply, medium inlet and outlet pipelines, and some electrical interfaces to use it. This product is widely used in industrial fields such as petroleum, chemical, pharmaceutical, textile printing and dyeing, light industry, and building materials.
一(yi)、 電加(jia)熱導熱油爐(lu)技術參數
參(can)數/數據/型號(hao) | QXD24 | QDX36 | QXD48 | QXD72 | QXD120 | QXD150 | QXD180 | QXD240 | QXD360 | QXD500 | QXD600 | QXD720 | |
額(e)定熱功率kW | 24 | 36 | 48 | 72 | 120 | 150 | 180 | 240 | 360 | 500 | 600 | 720 | |
熱效率% | >90% | >90% | >90% | >90% | >90% | >90% | >90% | >90% | >90% | >90% | >90% | >90% | |
設計壓力MPa | 0.6 | 0.6 | 0.6 | 0.6 | 0.68 | 0.68 | 0.68 | 0.7 | 0.7 | 1.0 | 1.0 | 1.0 | |
介(jie)質最高溫度℃ | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | |
爐內(nei)介(jie)質容量m3 | 0.02 | 0.023 | 0.03 | 0.05 | 0.08 | 0.11 | 0.12 | 0.15 | 0.25 | 0.4 | 0.5 | 0.6 | |
介質循(xun)環(huan)量m3 /h | 8 | 8 | 8 | 12.5 | 12.5 | 32 | 32 | 40 | 40 | 40 | 50 | 50 | |
配管連接(jie)口徑(jing)DN | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 80 | 80 | 100 | 100 | |
系統裝機(ji)容(rong)量kW | 27 | 40 | 55 | 80 | 130 | 180 | 200 | 260 | 400 | 550 | 650 | 780 | |
外(wai)形尺寸(cun)㎜ | 長 | 1800 | 1800 | 1800 | 1800 | 2000 | 2000 | 2000 | 2000 | 2000 | |||
寬 | 600 | 850 | 600 | 850 | 1350 | 1350 | 1700 | 1800 | 2200 | ||||
高 | 1850 | 1600 | 1600 | 1850 | 1650 | 2200 | 1650 | 1650 | 2000 | ||||
設(she)備總(zong)重㎏ | 540 | 630 | 660 | 780 | 1085 | 1240 | 1300 | 1400 | 2300 | ||||
