燃氣蒸(zheng)汽(qi)鍋爐出口(kou)應用于天(tian)燃氣豐富(fu)的中東和西(xi)亞國家(jia)（如俄(e)羅(luo)斯(si)，烏磁別(bie)克斯(si)坦，伊郎，伊拉(la)克，沙特(te)阿拉(la)伯，土耳其(qi)，印度，巴基(ji)斯(si)坦）
Gas and steam boilers are exported to countries in the Middle East and West Asia rich in natural gas (such as Russia, Uzbekistan, Iran, Iraq, Saudi Arabia, Türkiye, India, Pakistan)
燃(ran)氣(qi)蒸汽鍋(guo)爐(lu)(lu)是以天然氣(qi)為燃(ran)料，在爐(lu)(lu)內燃(ran)燒(shao)放出(chu)來(lai)的(de)熱量(liang)，加熱鍋(guo)內的(de)水，并(bing)使其汽化成蒸汽的(de)熱能轉換設備(bei)，水在鍋(guo)（鍋(guo)筒）中不斷被爐(lu)(lu)里氣(qi)體(ti)燃(ran)料燃(ran)燒(shao)釋放出(chu)來(lai)的(de)能量(liang)加熱溫度升高(gao)并(bing)產生帶壓蒸汽。
Gas steam boiler is a thermal energy conversion equipment that uses natural gas as fuel, burns the heat released in the furnace, heats the water in the pot, and vaporizes it into steam. The water in the pot (drum) is continuously heated by the energy released by the combustion of gas fuel in the furnace, heating the temperature and producing pressurized steam.
鍋爐參數Boiler parameters
【額定蒸發量】：0.5-20t/h
Rated evaporation capacity: 0.5-20t/h
【額(e)定 蒸汽 壓力】：0.7/1.0/1.25/1.6/2.0/2.5MPa等
Rated steam pressure: 0.7/1.0/1.25/1.6/2.0/2.5MPa, etc
【熱效率】：＞94%，帶冷凝器＞98%
[Thermal efficiency]:>94%, with condenser>98%
【低氮爐型】：NOx＜80mg/m3
Low nitrogen furnace type: NOx ＜ 80mg/m 3
【超低氮爐型】：NOx＜30mg/m3
Ultra low nitrogen furnace type: NOx ＜ 30mg/m 3
【應用范圍】：化學、塑料、橡(xiang)膠、醫藥、食(shi)品、紡織、工礦、造(zao)紙等(deng)需要蒸(zheng)汽的場所
Application scope]: Places that require steam, such as chemistry, plastics, rubber, medicine, food, textiles, industrial and mining, papermaking, etc
產品簡(jian)介(jie)：Product Introduction：

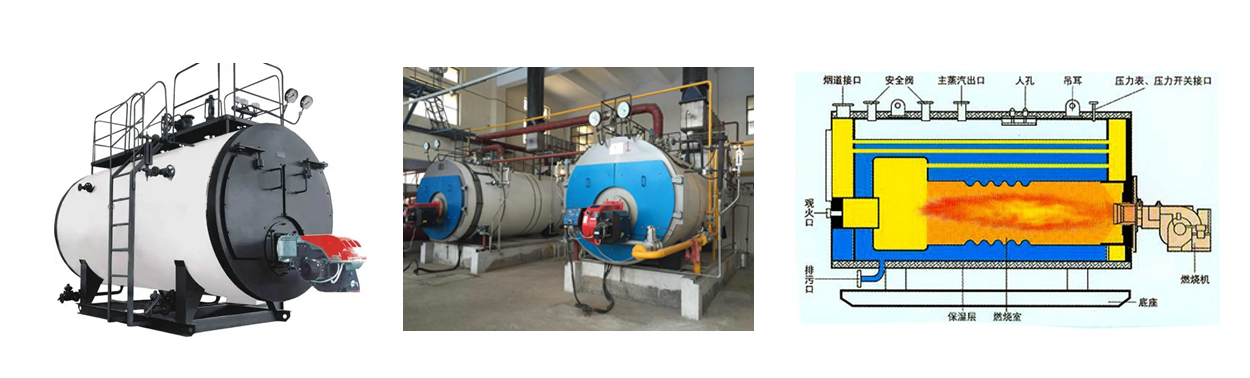

燃氣蒸(zheng)汽鍋(guo)爐，采用濕背式結(jie)構。第(di)(di)一回程為波形(xing)爐膽，第(di)(di)二，三回程為煙管(guan)。鍋(guo)爐配置完善(shan)的全(quan)自(zi)動控(kong)(kong)制裝置和安(an)全(quan)保護(hu)裝置，實現水(shui)位全(quan)自(zi)動控(kong)(kong)制和報警、停(ting)爐；出口蒸(zheng)汽壓力自(zi)動控(kong)(kong)制及(ji)超(chao)壓保護(hu)，鍋(guo)爐自(zi)動點火，燃燒器(qi)火力調(diao)節和熄火保護(hu)，以保證鍋(guo)爐安(an)全(quan)經濟運行(xing)。
Gas steam boiler adopts a wet back structure. The first return is the waveform furnace, and the second and third return are the smoke tubes. The boiler is equipped with fully automatic control devices and safety protection devices to achieve fully automatic water level control, alarm, and shutdown; Automatic control of outlet steam pressure and overpressure protection, automatic boiler ignition, burner firepower regulation and shutdown protection to ensure safe and economical operation of the boiler.
該產品的燃(ran)(ran)料為天然氣，燃(ran)(ran)料從(cong)燃(ran)(ran)燒器噴出，被電子點火(huo)棒(bang)點燃(ran)(ran)，在爐膽內微正壓燃(ran)(ran)燒。高(gao)壓煙氣由回燃(ran)(ran)室轉向180°入(ru)第(di)二回(hui)程(cheng)煙(yan)管，然后在前煙(yan)箱處再次轉向180°進入第三回程煙(yan)管后，經過煙(yan)箱經冷凝式節能器及煙(yan)囪排入大氣。
The fuel for this product is natural gas, which is sprayed out from the burner and ignited by an electronic ignition rod. It burns under slightly positive pressure inside the furnace. The high-pressure flue gas turns 180 ° from the combustion chamber into the second return flue pipe, and then turns 180 ° again at the front flue box into the third return flue pipe. After passing through the flue box, it is discharged into the atmosphere through a condensing energy-saving device and chimney.
構(gou)造與性能：onstruction and performance:
（1）波(bo)紋爐膽(dan)
爐(lu)膽采用(yong)波紋爐(lu)膽結構，既增加了輻射(she)和對(dui)流傳(chuan)熱(re)面積，又滿足(zu)了爐(lu)膽受高溫輻射(she)后(hou)自(zi)由(you)膨脹的(de)需(xu)要。
(1) Corrugated furnace liner
The furnace liner adopts a corrugated furnace liner structure, which not only increases the radiation and convective heat transfer area, but also meets the need for free expansion of the furnace liner after being exposed to high temperature radiation.
（2）爐膛優化設計(ji)
更具(ju)各類燃燒(shao)器(qi)火焰(yan)尺寸(cun)(cun)，針對性地(di)優化了爐膛(tang)尺寸(cun)(cun)，爐膛(tang)與燃燒(shao)器(qi)火焰(yan)完美匹配，有(you)效地(di)抑制了NOx的(de)形成，避(bi)免了(le)(le)(le)高溫煙(yan)氣直(zhi)接沖刷爐(lu)膽。結合熱(re)(re)工試驗，合理地分(fen)配(pei)爐(lu)膛輻(fu)射受熱(re)(re)面積(ji)、煙(yan)管(guan)對流受熱(re)(re)面積(ji)，延長了(le)(le)(le)鍋(guo)爐(lu)的(de)使用壽(shou)命(ming)，提高了(le)(le)(le)鍋(guo)爐(lu)熱(re)(re)效率。
(2) Furnace optimization design
More tailored to various burner flame sizes, the furnace size has been optimized for a perfect match between the furnace and burner flames, effectively suppressing the formation of NOx and avoiding direct flushing of high-temperature flue gas into the furnace liner. By combining thermal experiments, the reasonable allocation of furnace radiation heating area and smoke pipe convection heating area has extended the service life of the boiler and improved its thermal efficiency.
（3）煙(yan)氣系統
采用上(shang)乘的(de)三(san)回程(cheng)全濕背式結構；二(er)、三(san)回程(cheng)煙管采用低(di)阻(zu)螺(luo)旋傳(chuan)熱技術，換熱效果好、使用壽(shou)命長；獨(du)特的(de)前后煙箱設計制作工藝，內置迷宮(gong)式隔熱裝置，外置U型卡(ka)槽式(shi)鉸鏈(lian)設(she)計，整體鋼制面板，厚重結實(shi)，有效地降低了散熱損失，提(ti)高(gao)鍋爐熱效率。
(3) Smoke system
Adopting a superior three return wet back structure; 2、 The three return smoke pipe adopts low resistance spiral heat transfer technology, which has good heat transfer effect and long service life; The unique design and manufacturing process of the front and rear smoke boxes, with built-in maze type insulation device, external U-shaped card slot hinge design, and overall steel panel, are thick and sturdy, effectively reducing heat loss and improving boiler thermal efficiency.
（4）節能(neng)器、冷凝器 (4) Energy saving device, condenser
結構緊湊(cou) Compact structure | 并(bing)聯布置 Parallel arrangement | 傳熱性能好 Good heat transfer performance | 翅(chi)片管換(huan)熱器 Finned tube heat exchanger | 材質 material quality |
布置(zhi)于鍋爐頂(ding)部，結構緊湊(cou)，無占(zhan)地面積。 | 對于熱水鍋爐的(de)節能器(qi)、冷(leng)(leng)凝(ning)(ning)器(qi)，采用并聯兩級布(bu)置，工質流(liu)速降(jiang)低，減小了節能器(qi)、冷(leng)(leng)凝(ning)(ning)器(qi)中(zhong)工質流(liu)動(dong)阻力(li) | 逆流布置結構，換熱溫差大，傳熱性能(neng)好 | 采用優化(hua)(hua)設計的翅(chi)片管換熱器，翅(chi)化(hua)(hua)比大，翅(chi)化(hua)(hua)效率高，煙(yan)氣流阻小(xiao)。 | 耐腐蝕碳鋼(gang)、ND鋼（09CrCuSb）、不銹鋼(gang)（SUS304）等材質可選 |
Located on the top of the boiler, it has a compact structure and no footprint. | For the energy-saving device and condenser of hot water boilers, a parallel two-stage arrangement is adopted, which reduces the flow rate of the working fluid and reduces the flow resistance of the working fluid in the energy-saving device and condenser | Countercurrent layout structure, large heat transfer temperature difference, and good heat transfer performance | The finned tube heat exchanger with optimized design has a high finning ratio, high finning efficiency, and low flue gas flow resistance | Corrosion resistant carbon steel, ND steel (09CrCuSb), stainless steel (SUS304) and other materials are optional |
（5）配件(jian) (5) Accessories
壓(ya)力表 Pressure gauge | 超(chao)壓保護裝置 Overpressure protection device | 水位(wei)計 Water level gauge | 布水器 Water dispenser | 煙氣冷凝水收(shou)集排(pai)放 Collection and discharge of flue gas condensate water | 鍋筒配件 Drum accessories | 優質復(fu)合保溫材料 High quality composite insulation materials |
大口徑表盤、指針顯示(shi)、高(gao)精度壓(ya)力表；配備專用壓(ya)力表緩沖管。 | 遠(yuan)傳壓(ya)(ya)力報(bao)(bao)警(jing)、機械式(shi)壓(ya)(ya)力開關(guan)報(bao)(bao)警(jing)、彈簧全啟式(shi)安全閥三重超壓(ya)(ya)保(bao)(bao)護裝置，確(que)保(bao)(bao)鍋爐在(zai)額定壓(ya)(ya)力以內工作 | 鍋(guo)爐兩側，通過平衡桶連(lian)接(jie)水位(wei)計，板式、雙(shuang)色、浮筒等(deng)多類(lei)水位(wei)計可選，水位(wei)觀察直觀、檢測穩定、控制靈敏。 | 鍋爐(lu)(lu)給(gei)水(shui)入口設置(zhi)專(zhuan)用布水(shui)器(qi)，給(gei)水(shui)經布水(shui)器(qi)后分散均勻地進(jin)入鍋爐(lu)(lu)，避免了給(gei)水(shui)時的局部溫度驟降。 | 采用合(he)理的煙(yan)(yan)道結構(gou)，燃氣(qi)燃燒產生的冷(leng)凝水(shui)迅速匯(hui)集，在前后煙(yan)(yan)箱排(pai)出，極大限度減(jian)小了冷(leng)凝水(shui)對鍋爐的腐蝕。 | 人孔、手孔等檢(jian)查孔設置齊全(quan)(quan)，位置合理(li)，維護(hu)檢(jian)修(xiu)方(fang)便。彈(dan)簧式安全(quan)(quan)防爆(bao)門，確保安全(quan)(quan)運行 | 保溫采(cai)用(yong)高熱阻(zu)硅(gui)酸鋁纖維(wei)+防火鋁箔熱量(liang)反射(she)膜+保(bao)溫棉結構，導熱(re)系數(shu)低，保(bao)溫效果好(hao)。 |
Large caliber dial, pointer display, high-precision pressure gauge; Equipped with Huayue dedicated pressure gauge buffer tube. | Triple overpressure protection devices, including remote pressure alarm, mechanical pressure switch alarm, and spring fully open safety valve, ensure that the boiler operates within the rated pressure | On both sides of the boiler, a water level gauge is connected through a balance bucket. Multiple types of water level gauges, such as plate, dual color, and float, are available. The water level observation is intuitive, the detection is stable, and the control is sensitive. | A dedicated water distributor is installed at the inlet of the boiler feed water, which disperses and evenly enters the boiler after passing through the distributor, avoiding local temperature drops during feed water. | By adopting a reasonable flue structure, the condensed water generated by gas combustion quickly collects and is discharged from the front and rear smoke boxes, greatly reducing the corrosion of condensed water on the boiler. | Manholes, handholes, and other inspection holes are fully installed, reasonably positioned, and easy to maintain and repair. Spring type safety explosion-proof door ensures safe operation | The insulation adopts a high thermal resistance aluminum silicate fiber+fireproof aluminum foil heat reflection film+insulation cotton structure, with low thermal conductivity and good insulation effect. |
（6）外(wai)觀 (6) Appearance
專業工業造型設計(ji)師精心設計(ji)的外觀，新穎獨特而又不失與周(zhou)圍環境的協調，徹底改變了工業鍋爐(lu)笨重的形象；表(biao)面(mian)噴(pen)涂(tu)高檔環保漆(qi)，漆(qi)面(mian)色澤純正，耐(nai)水(shui)耐(nai)刮；前后爐(lu)面(mian)為高溫磨砂噴(pen)漆(qi)，平整美觀，堅(jian)固耐(nai)用，易于保養維(wei)護。
The appearance carefully designed by professional industrial designers is novel and unique, yet still in harmony with the surrounding environment, completely changing the bulky image of industrial boilers; The surface is sprayed with high-end environmentally friendly paint, with a pure color and water resistance and scratch resistance; The front and rear furnace surfaces are high-temperature frosted and painted, which are flat, beautiful, sturdy, durable, and easy to maintain.
· 燃氣(qi)蒸(zheng)汽鍋爐技術(shu)參(can)數 Technical parameters of gas steam boilers
項目(mu)project
| WNS1 | WNS1.5 | WNS2 | WNS3 | WNS4 | WNS6 | WNS8 | WNS10 | WNS12 | WNS15 | WNS20 | ||
額(e)定蒸(zheng)發量(liang) Rated evaporation capacity | t/h | 1 | 1.5 | 2 | 3 | 4 | 6 | 8 | 10 | 12 | 15 | 20 | |
額(e)定(ding)蒸汽壓(ya)力 Rated steam pressure | Mpa | 0.7/1.0/1.25/1.6 | |||||||||||
飽和蒸(zheng)汽溫(wen)度(du) Saturated steam temperature | ℃ | 171/184/194/204 | |||||||||||
額定給水溫度 Rated feedwater temperature | ℃ | 20 | 104(熱力除氧）/20（常(chang)溫(wen)除(chu)氧(yang)） | ||||||||||
水容量 Water capacity | m3 | 4.15 | 5.6 | 7 | 8.15 | 9.3 | 14 | 16.5 | 20 | 23 | 25 | 39.5 | |
設計(ji)換熱面積 Design heat exchange area | m2 | 70 | 97 | 136.7 | 172.4 | 219.8 | 305.3 | 378 | 478.5 | 556 | 697 | 967 | |
設計熱效率 Design thermal efficiency | % | 94~98 | |||||||||||
設計(ji)燃料 Design fuel | — | 天然(ran)氣 | |||||||||||
主汽閥口徑 Main steam valve diameter | mm | 50 | 65 | 65 | 80 | 100 | 125 | 150 | 150 | 150 | 200 | 200 | |
放(fang)汽閥口徑 Discharge valve diameter | mm | 25 | 40 | 40 | 40 | 40 | 40 | 50 | 50 | 50 | 50 | 50 | |
安全(quan)閥口(kou)徑(jing) Safety valve diameter | mm | 2×40 | 2×40 | 2×40 | 2×50 | 2×50 | 2×65 | 80、65 | 2×80 | 2×80 | 2×100 | 2×100 | |
排污閥口徑 Discharge valve diameter | mm | 40 | 50 | 50 | 50 | 50 | 2×50 | 2×50 | 2×50 | 2×50 | 2×50 | 2×50 | |
給水口(kou)徑 Water supply diameter | mm | 40 | 40 | 40 | 40 | 40 | 40 | 50 | 50 | 65 | 65 | 65 | |
冷凝(ning)器進出水口徑 Condenser inlet and outlet diameter | mm | 40 | 40 | 40 | 40 | 40 | 40 | 50 | 50 | 50 | 65 | 65 | |
煙囪直(zhi)徑 Chimney diameter | mm | 280 | 320 | 350 | 450 | 550 | 600 | 650 | 750 | 900 | 1000 | 1200 | |
天然(ran)氣燃(ran)料耗量 Natural gas fuel consumption | Nm3/h | 75 | 119 | 149 | 223 | 298 | 393 | 524 | 662 | 840 | 983 | 1311 | |
鍋(guo)爐運輸重(zhong)量 Boiler transportation weight | t | 5.5 | 6.1 | 10.5 | 11.3 | 12 | 14.1 | 18.4 | 24.5 | 28.8 | 35 | 47 | |
最(zui)大運輸(shu)尺寸 Maximum transportation size | 長long | mm | 3600 | 4200 | 5000 | 5100 | 5250 | 6350 | 7000 | 7600 | 7800 | 8300 | 9200 |
寬wide | mm | 1870 | 1950 | 2100 | 2150 | 2240 | 2600 | 2800 | 3000 | 3100 | 3200 | 3600 | |
高high | mm | 2310 | 2400 | 2600 | 2750 | 2900 | 3070 | 3130 | 3450 | 3600 | 3800 | 4100 | |
最大外型(xing)尺寸(cun) Maximum external dimensions | 長long | mm | 4200 | 5200 | 5800 | 5900 | 6150 | 7600 | 8400 | 9100 | 9300 | 9900 | 11000 |
寬(kuan)wide | mm | 2400 | 2800 | 3000 | 3060 | 3150 | 3360 | 3500 | 3910 | 3900 | 4400 | 4800 | |
高high | mm | 3000 | 3200 | 3400 | 3500 | 3600 | 3800 | 3900 | 4100 | 4300 | 4800 | 5300 | |
底座尺(chi)寸(cun) Base size | 長long | mm | 3000 | 3800 | 4300 | 4400 | 4600 | 5400 | 6400 | 6600 | 7400 | 7800 | 8200 |
寬wide | mm | 1200 | 1200 | 1400 | 1400 | 1600 | 1800 | 2000 | 2000 | 2200 | 2200 | 2400 | |
備注： 1. 上述(shu)所有值，是以天然氣(qi)（LNG）低位(wei)發熱值8,400kcal/Nm3、 2. 根據用戶需(xu)求，我公司(si)可以提供(gong)其他(ta)特殊(shu)型號的鍋爐。
Note: 1 All the above values are based on the low calorific value of natural gas (LNG) at 8400kcal/Nm 3、
2. According to user needs, our company can provide other special models of boilers
