燃(ran)氣(qi)(qi)真空(kong)(kong)熱水(shui)鍋爐(lu)：就(jiu)是在封閉(bi)的(de)鍋爐(lu)爐(lu)體(ti)內(nei)(nei)部形成(cheng)一個(ge)負壓的(de)真空(kong)(kong)環境，在機體(ti)內(nei)(nei)填充熱媒水(shui)，以天燃(ran)氣(qi)(qi)為燃(ran)料，通過燃(ran)氣(qi)(qi)燃(ran)燒器(qi)在爐(lu)膛(tang)內(nei)(nei)燃(ran)燒加(jia)熱熱媒水(shui)，再由(you)熱媒水(shui)蒸(zheng)發—冷凝至換(huan)熱器(qi)上，再由(you)換(huan)熱器(qi)來加(jia)熱需要(yao)加(jia)熱的(de)水(shui)稱之為燃(ran)氣(qi)(qi)真空(kong)(kong)熱水(shui)鍋爐(lu)。
Gas vacuum hot water boiler: It is a vacuum environment that forms a negative pressure inside the closed boiler body, fills the body with heat medium water, uses natural gas as fuel, burns and heats the heat medium water in the furnace through a gas burner, evaporates and condenses the heat medium water to the heat exchanger, and then heats the water that needs to be heated by the heat exchanger. It is called a gas vacuum hot water boiler.
燃氣真(zhen)空熱(re)(re)(re)水(shui)(shui)鍋爐的(de)工作(zuo)原理：利用水(shui)(shui)在低壓情況下沸點低的(de)特性，快速加熱(re)(re)(re)封密(mi)的(de)爐體內(nei)填裝的(de)熱(re)(re)(re)媒水(shui)(shui)，使(shi)熱(re)(re)(re)媒水(shui)(shui)沸騰蒸(zheng)發出高(gao)溫水(shui)(shui)蒸(zheng)汽，水(shui)(shui)蒸(zheng)汽凝結在換熱(re)(re)(re)管上加熱(re)(re)(re)換熱(re)(re)(re)管內(nei)的(de)冷(leng)水(shui)(shui)，達到供應熱(re)(re)(re)水(shui)(shui)的(de)目的(de)。
The working principle of a gas vacuum hot water boiler: By utilizing the low boiling point of water under low pressure, the hot medium water filled in the sealed furnace is quickly heated, causing the hot medium water to boil and evaporate into high-temperature water vapor. The water vapor condenses on the heat exchange tube to heat the cold water inside the heat exchange tube, achieving the purpose of supplying hot water.
超(chao)低氮(dan)真(zhen)空(kong)熱水鍋爐，采用(yong)意(yi)大(da)利超(chao)低氮(dan)及冷(leng)凝(ning)換熱技術(shu)，三回程(cheng)濕(shi)背式(shi)燃燒室，大(da)開啟雙向旋轉式(shi)爐門(men)，真(zhen)空(kong)相變(bian)換熱，內置一體(ti)式(shi)冷(leng)凝(ning)換熱器。鍋爐使用(yong)壽命長，熱效率高(gao)，可滿足采暖、衛生熱水的供熱需求。
The ultra-low nitrogen vacuum hot water boiler adopts Italian ultra-low nitrogen and condensation heat exchange technology, a three return wet back combustion chamber, a large opening bidirectional rotating furnace door, vacuum phase change heat exchange, and an integrated condensation heat exchanger. The boiler has a long service life, high thermal efficiency, and can meet the heating needs of heating and sanitary hot water
配備(bei)品牌(pai)燃燒器，可加裝(zhuang)煙氣外循環裝(zhuang)置(zhi)（FGR），氮氧化物排(pai)放＜30mg/m3，排放符合環保法規(gui)要求。
Equipped with branded burners, can be equipped with a flue gas external circulation device (FGR), with nitrogen oxide emissions less than 30mg/m3, and emissions in compliance with environmental regulations.
燃氣真空熱(re)水鍋爐的用途：
The purpose of gas vacuum hot water boiler:
供(gong)熱采暖：商業綜合體、酒店賓館、辦公樓(lou)、住宅、學校等。
Heating: Commercial complexes, hotels and guesthouses, office buildings, residential buildings, schools, etc.
生(sheng)(sheng)活(huo)熱水：酒(jiu)店、游泳館、桑拿溫泉、商(shang)業(ye)綜合(he)體、醫院、學校(xiao)、生(sheng)(sheng)產工藝用途等。
Domestic hot water: hotels, swimming pools, sauna hot springs, commercial complexes, hospitals, schools, production technology applications, etc.
燃(ran)氣(qi)真空(kong)熱(re)水(shui)鍋爐，出口天燃(ran)氣(qi)豐富的(de)中(zhong)東和西亞國家（如俄羅斯(si)，烏磁別克斯(si)坦，伊郎(lang)，伊拉克，沙特(te)阿拉伯，土(tu)耳(er)其(qi)，印度，巴基斯(si)坦）需(xu)要(yao)熱(re)水(shui)供熱(re)采暖的(de)場所。
Gas fired vacuum hot water boilers are places where hot water heating is needed in Middle East and West Asia countries (such as Russia, Uzbekistan, Iran, Iraq, Saudi Arabia, Türkiye, India, Pakistan) exporting natural gas
燃氣真空熱水鍋爐性(xing)能(neng)參數(shu)
Performance parameters of gas vacuum hot water boiler
型號 model WZK－*** | ×104kcal/h | 30 | 60 | 90 | 120 | 180 | 240 | 300 | 360 | 480 | 600 | |
熱功(gong)率(lv)Thermal power | kW | 350 | 700 | 1050 | 1400 | 2100 | 2800 | 3500 | 4200 | 5600 | 7000 | |
MW | 0.35 | 0.7 | 1.05 | 1.4 | 2.1 | 2.8 | 3.5 | 4.2 | 5.6 | 7.0 | ||
設計熱(re)效率Design thermal efficiency | % | 97～104 | ||||||||||
排煙溫度Smoke exhaust temperature | ℃ | ≤（回(hui)水溫(wen)度+10℃） | ||||||||||
電源source | V/Hz | 220～380/50（3N/50 220～380) | ||||||||||
用電總(zong)功(gong)率Total power consumption | kW | 1.1 | 2.5 | 4.2 | 5.5 | 9.5 | 11 | 15 | 18 | 24 | 27 | |
天然氣natural gas | 最(zui)低耗量Minimum consumption | Nm3/h | 34.3 | 68.5 | 102.8 | 136.2 | 203.8 | 271.4 | 338.9 | 406.7 | 542.2 | 677.2 |
閥(fa)組口徑Valve group diameter | DN | 32 | 50 | 50 | 50 | 50 | 50 | 65 | 65 | 80 | 80 | |
壓力（動壓） Pressure (dynamic pressure) | kPa | 5～7 | 6～8 | 6～8 | 8～10 | 10～12 | 12～15 | 14～16 | 14～16 | 16～18 | 16～18 | |
氮氧化(hua)合(he)物（NOx）Nitrogen oxides (NOx) | mg/Nm3 | 80（BLUE）/ 30（FGR） | ||||||||||
鍋爐安全閥口 Boiler safety valve port N3 | DN | 40 | 40 | 40 | 40 | 50 | 50 | 50 | 80 | 80 | 80 | |
鍋爐排汽口 Boiler exhaust port ; N4 | DN | 40 | 40 | 40 | 40 | 40 | 65 | 65 | 65 | 65 | 65 | |
鍋(guo)爐排污(wu)口 Boiler discharge outlet N5 | DN | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | |
鍋爐排煙口 Boiler exhaust port N9 | φmm | 219 | 273 | 325 | 377 | 426 | 500 | 560 | 600 | 700 | 800 | |
鍋(guo)爐(lu)凈重Net weight of boiler | t | 2.6 | 3.4 | 4.0 | 4.8 | 7.0 | 7.6 | 8.7 | 12.0 | 15.2 | 17.5 | |
熱媒水容量(liang)Heat medium water capacity | t | 1.9 | 2.1 | 2.6 | 4.4 | 4.7 | 4.9 | 4.7 | 9.5 | 12.3 | 13.3 | |
運(yun)行(xing)重量Operating weight | t | 4.5 | 5.5 | 8.6 | 9.2 | 11.7 | 12.5 | 13.4 | 21.5 | 27.5 | 30.8 | |
A型換熱器(qi)（△t=10℃，進/出(chu)水溫度(du)40℃/50℃、50℃/60℃，適用于地暖、中(zhong)央空調(diao)采暖系統） | ||||||||||||
熱功率Thermal power | ×104kcal/h | 30 | 60 | 90 | 120 | 180 | 240 | 300 | 360 | 480 | 600 | |
額(e)定循環(huan)量Rated cycle capacity | m3/h | 30 | 60 | 90 | 120 | 180 | 240 | 300 | 360 | 480 | 600 | |
供水口N1/回水口N2 Supply port N1/Return port N2 | DN | 80 | 100 | 125 | 150 | 200 | 250 | 250 | 300 | 300 | 350 | |
B型換(huan)熱(re)器（△t=20℃，進(jin)/出水溫度(du)40℃/60℃、60℃/80℃適用于(yu)衛生熱(re)水、暖氣片采暖系統(tong)） | ||||||||||||
熱功(gong)率(lv)Thermal power | ×104kcal/h | 30 | 60 | 90 | 120 | 180 | 240 | 300 | 360 | 480 | 600 | |
額定循環量Rated cycle capacity | m3/h | 15 | 30 | 45 | 60 | 90 | 120 | 150 | 180 | 240 | 300 | |
供(gong)水(shui)(shui)口N1/回水(shui)(shui)口N2Supply port N1/Return port N2 | DN | 50 | 80 | 80 | 100 | 125 | 150 | 200 | 200 | 250 | 250 | |
備注: 1、燃料計算基準值：天然氣低位發熱值8500kcal/Nm3； 2、排煙溫度隨回水溫度的變化而變化，排煙溫度≤（回水溫度+10℃）； Note: 1. Fuel calculation benchmark value: natural gas low heating value 8500kcal/Nm3; 2. The exhaust temperature changes with the temperature of the return water, and the exhaust temperature is ≤ (return water temperature+10 ℃); In the process of continuous innovation and improvement, the above parameters may change, and the final drawing shall prevail. | ||||||||||||

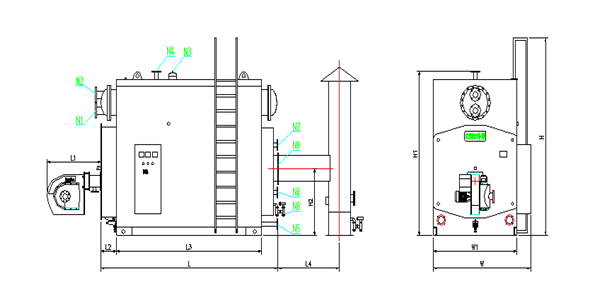

WZK型低氮（NOX<30-50mg/m3）冷凝真空熱水鍋爐外形尺寸(cun)-示意(yi)圖(tu)
Outline dimensions of WZK low nitrogen (NOX<30-50mg/m3) condensing vacuum hot water boiler - schematic diagram
WZK型低氮（NOX<30-50mg/m3）冷凝真空熱水鍋爐外形尺寸(cun)數據-參考(kao)示(shi)意表
Outline Dimensional Data of WZK Low Nitrogen (NOX<30-50mg/m3) Condensing Vacuum Hot Water Boiler - Reference Diagram Table
熱功率Thermal power | L | L1 | L2 | L3 | L4 | W | W1 | H | H1 | H2 | |
×104kcal/h | kW | ||||||||||
30 | 350 | 2561 | 508 | 157 | 2130 | 1200 | 1554 | 1302 | 2614 | 2114 | 870 |
60 | 700 | 2947 | 840 | 157 | 2520 | 1200 | 1675 | 1422 | 2803 | 2326 | 920 |
90 | 1050 | 3240 | 840 | 157 | 2810 | 1200 | 1725 | 1472 | 2888 | 2417 | 960 |
120 | 1400 | 3662 | 863 | 157 | 3160 | 1200 | 1902 | 1672 | 3133 | 2641 | 1070 |
180 | 2100 | 3987 | 1178 | 157 | 3500 | 1200 | 2022 | 1772 | 3302 | 2826 | 1150 |
240 | 2800 | 4186 | 1178 | 157 | 3650 | 1200 | 2122 | 1872 | 3447 | 2971 | 1200 |
300 | 3500 | 4759 | 1178 | 187 | 4150 | 1500 | 2197 | 1972 | 4036 | 3161 | 1300 |
360 | 4200 | 5046 | 1178 | 187 | 4380 | 1500 | 2454 | 2176 | 4199 | 3394 | 1360 |
480 | 5600 | 6030 | 1325 | 187 | 5340 | 1500 | 2584 | 2276 | 4376 | 3627 | 1450 |
600 | 7000 | 6482 | 1637 | 187 | 5790 | 1500 | 2774 | 2476 | 4662 | 3788 | 1600 |
